Description

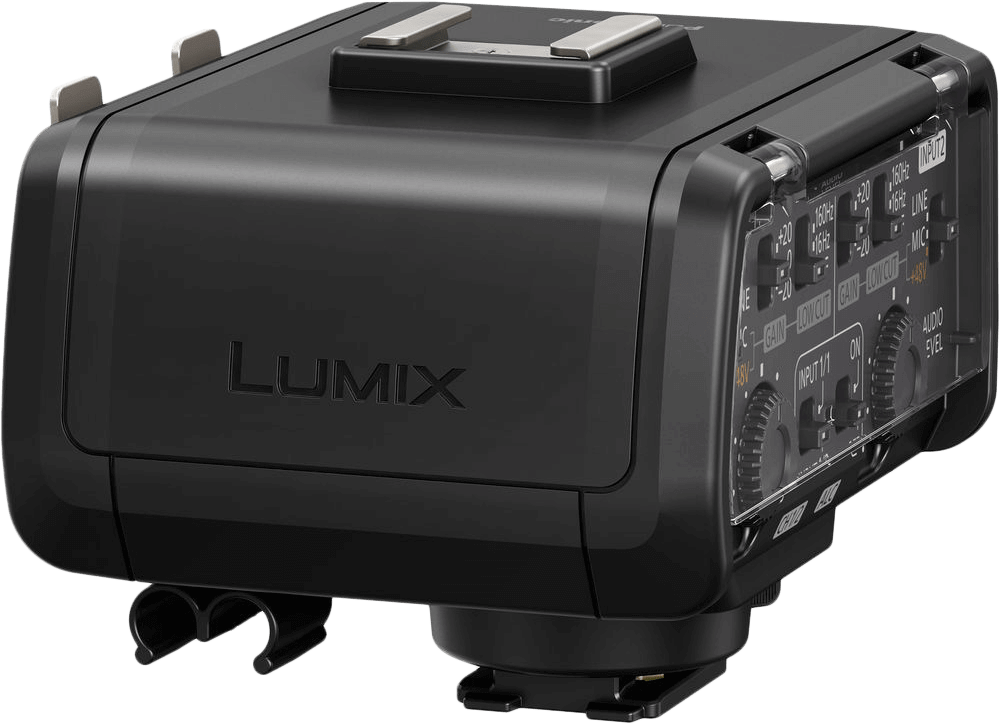

Panasonic DMW-XLR1 – XLR Microphone Adapter
Expand the audio capabilities of your Lumix mirrorless camera with this shoe-mounted DMW-XLR1 XLR Microphone Adapter from Panasonic. It connects to the camera directly through the hot shoe and provides two XLR inputs for using professional microphones. It also features a control panel with a clear cover that sports numerous physical dials and controls for changing the levels, gain, and low cut filter of each input individually. Also, it supports high-resolution recording formats up to 96 kHz and 24-bit. A cable clamp is present as well for cable management and a shoe mount on the top of the unit can support additional accessories. Additionally, it receives power directly from the camera.
KEY FEATURES
- HIGH-QUALITY STEREO AUDIO – Attaching a commercially available XLR microphone and combining it with a compatible digital camera enables recording of high-quality stereo audio
- AUTHENTIC PANASONIC LUMIX ACCESSORY – DMW-XLR1 is an XLR audio microphone adaptor for professional video production. Compatible with LUMIX GH5, GH5s, S1, S1R digital mirrorless cameras

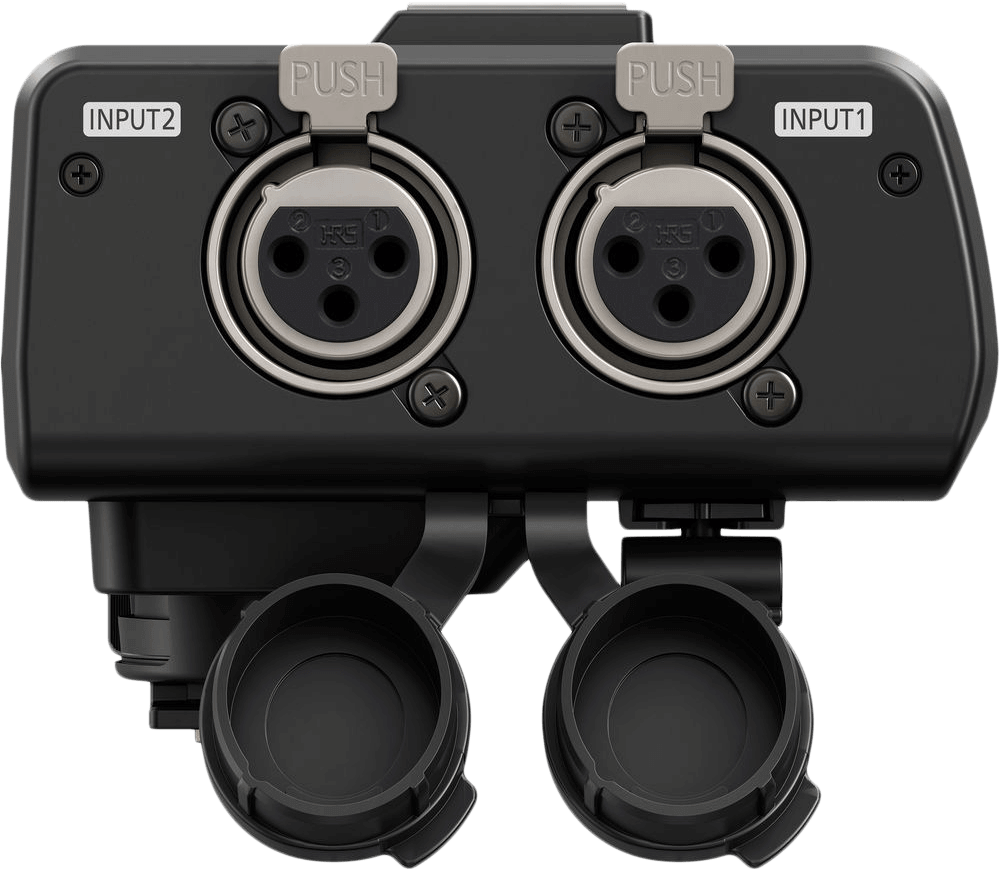

- XLR MICROPHONE ADAPTOR INPUT/OUTPUT – Input: Analog XLR Jack x 2 terminals. Control panel can be checked through a clear cover. Output: Digital I2S format, Fs = 48 k or 96 kHz, Bit depth = 16 or 24 bit
- INTEGRATED CABLE CLAMP – Integrated cable clamp keeps cables out of the way for ease of audio/video recording. DC phantom power is supplied by the camera body via a hot shoe connector

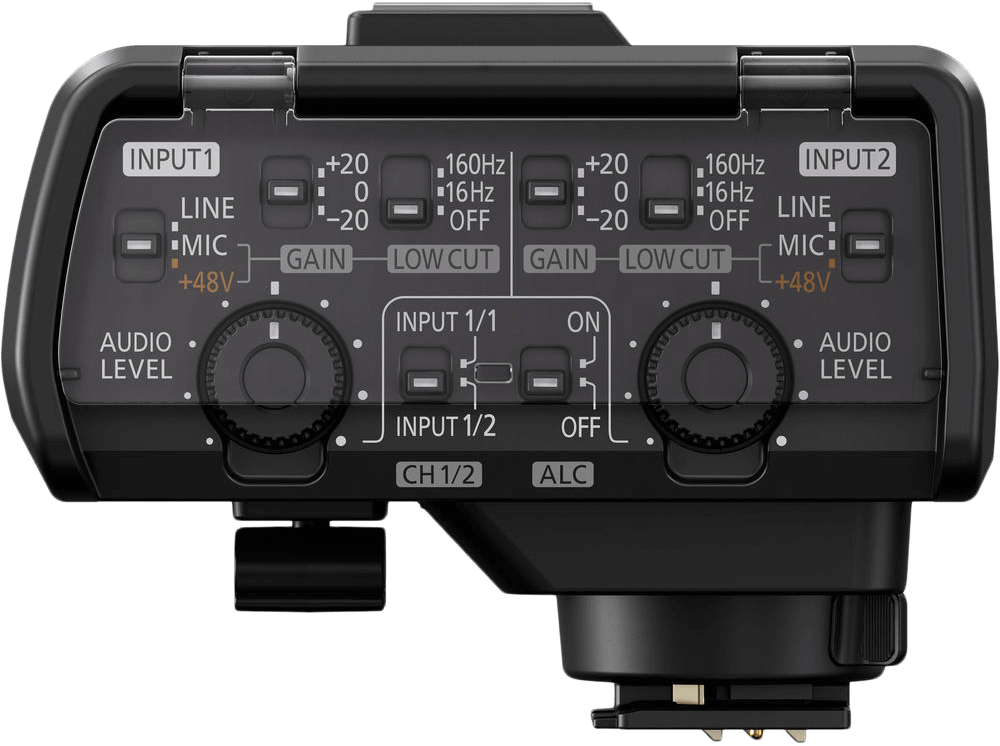

- FEATURED CONTROLS – Gain Switch maintains a suitable signal amplitude for output. Low Cut Switch is a high pass filter that removes the low frequencies
